1． Introduce

XJB200 series biological microscope is equipped with plan achromatic objectives and wide field eyepieces. It provides clear image, wide field, convenience operation. It can be used for biology medicine agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.

Features

▲ With wide field eyepieces and plan achromatic objectives, the field of view is widely and clear

▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm

▲ Using Kohler illumination with 6V 20W halogen lamp with brightness control

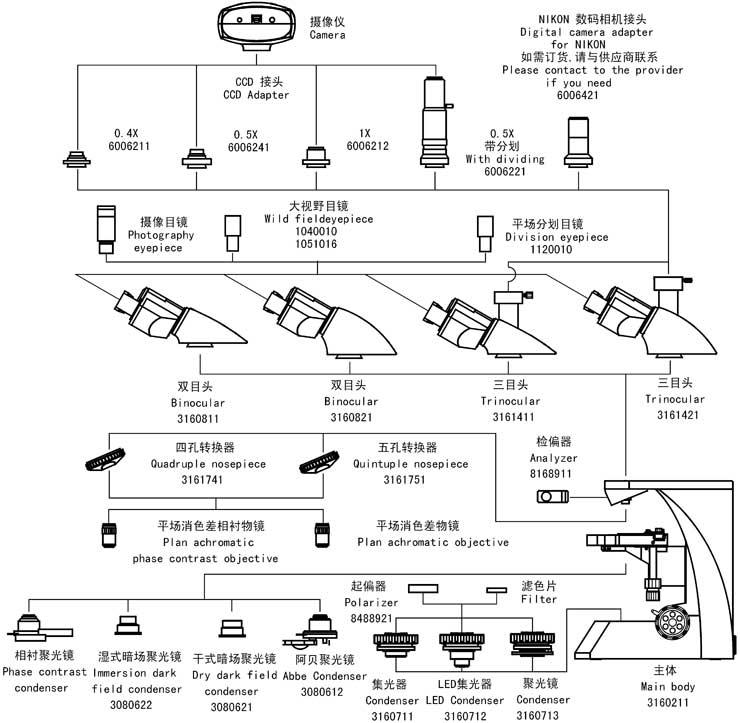

2． Structure

3． Image

成像圖1.jpg 成像圖2.jpg 成像圖3.jpg

Polarized observe Bright type observe Phase contrast observe

Specification		XJB200B	XJB200T
Optics System	Infinity Optical System F=200mm	●	●
Viewing Head	Binocular , Inclination of 30?	●
Viewing Head	Trinocular, Inclination of 30?		●
Eyepiece	WF10X(Φ20mm)	●	●
	WF16X(Φ11mm)	○	○
	Dividing10X(\|μ20mm),0.1mm/Div	○	○
Polarization	Polarizer:360° rotatable stage	○	○
Polarization	Analyzer:Sliding type	○	○
Nosepiece	Quintuple(Backward ball bearing inner locating)	●	●
Objectives	Plan Achromatic PL 4X/0.10 WD=19.8mm	●	●
	Plan Achromatic PL 10X/0.25 WD=5mm	●	●
	Plan Achromatic PL 20X/0.40 WD=8.8mm		●
	Plan Achromatic PL 40X/0.65(Spring) WD=0.66mm	●	●
	Plan Achromatic PL 100X/1.25 (Spring, oil) WD=0.36mm	●	●
Stage	Double layer mechanical (Size:210mmX140mm, Move range: 75mmX50mm)	●	●
Condenser	Abbe Condenser: NA=1.25 Rack & pinion adjustable	●	●
	Dark Condenser(Dry) NA=0.6-0.9	○	○
	Dark Condenser(Oil) NA=0.85-1.3	○	○
Filter	Blue filter	●	●
	Frosted filter	●	●
	Green(Φ32)	○	○
	Yellow(Φ32)	○	○
Focus System	Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 2μm.	●	●
Collector	For halogen lamp	●	●
Illumination	6V 20W Halogen lamp with brightness control	●	●
C-Mount	0.4X	○	○
	0.5X	○	○
	1X	○	○
	0.5X with dividing 0.1mm/Div	○	○
Phase contrast unit	Eyepiece：Centering telescope	○	○
	Phase contrast plan achromatic Objective 10X/0.25 PHP	○	○
	Phase contrast plan achromatic Objective 20X/0.40 PHP(Spring)	○	○
	Phase contrast plan achromatic Objective 40X/0.65 PHP(Spring)	○	○
	Phase contrast plan achromatic Objective 100X/1.25 PHP(Spring, oil)	○	○
	Turnplate phase contrast condenser(PH-￠?)	○	○
	Turnplate phase contrast condenser(PH-￠ò)	○	○
	Flashboard phase contrast condenser	○	○
	Pull board phase contrast condenser	○	○

Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
