XTL945 stereo zoom microscope is a kind of positive image optical instruments, magnification continuously variable. Equipped with a long working distance imaging system, wide-field eyepieces, provides superior optical and mechanical operations performance, is an important instrument in medicine, biochemical genetics, available for industry, electronics and other industries for product testing, and relevant teaching, experimental research for colleges.

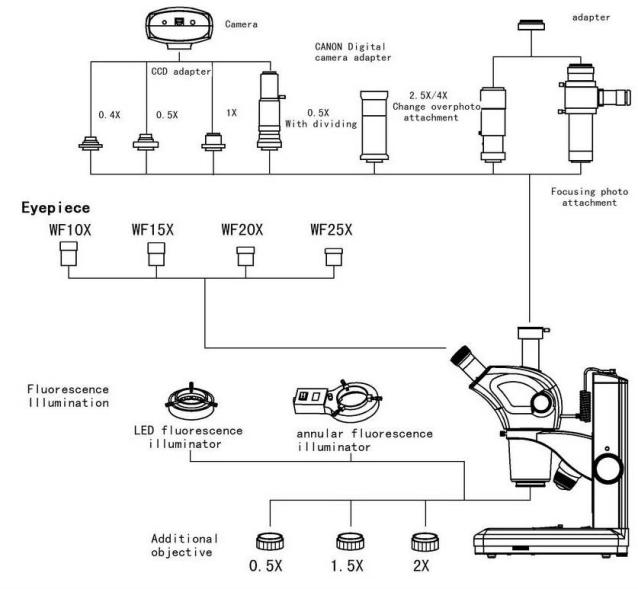

2． Structure


Specification		XTL945B	XTL945T
Optical System	Greenough stereoscopic	●	●
Viewing Head	Binocular, 45° inclined	●
Viewing Head	Trinocular, 45° inclined		●
Eyepiece	WF10X/22mm	●	●
	WF15X/15mm	o	o
	WF20X/12mm	o	o
Diopter Adjustment	±5°	●	●
Interpupillary Adjustment	55~75mm	●	●
Zoom ratio	1:9	●	●
Magnification Range	7X~63X	●	●
Objective	1X, WD=110mm	●	●
	0.50X, WD=165mm	o	o
	1.5X, WD=60mm	o	o
Working Distance	110mm	●	●
Field of View	3.49mm-33.8mm	●	●
Illumination	Reflected illuminating 3W High brightness LED	●	●
Illumination	Transmitted illuminating 5W High brightness LED	●	●
C-Mount	0.5X CCD adapter with dividing	o	o
C-Mount	1X CCD adapter with dividing	o	o
Weight/Volumn	21KGS/5949.543CM
