As one of our base-model inverted metallurgical microscopes, but the XJM500 series is made with the same precision and quality standards as our more advanced microscopes. Employs all new and improved finity plan optical system and with its small footprint and costefficiency, XJM500 series is the best choice for researching of university, factory , institutions and so on. CCD or digital camera can be attached for image capture and professional but user-friendly metallurgical analysis softeare

is also available for option.

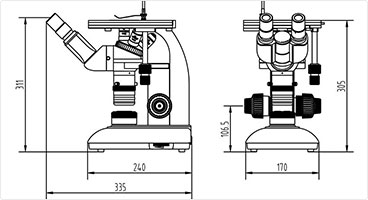

2. Structure


Specification		XJM500M	XJM500B
Optical System	Finity Optical System	●	●
Eyepiece	WF10X/18mm	●	●●
	WF12.5X/14m	○	○
	WF16X/13mm	○	○
	WF5X/20mm	○	○
	WF10X/18mm (Reticule, 0.1mm)	○	○
Viewing Head	Siedentopf monocular, inclined at 45°	●
Viewing Head	Siedentopf binocular, inclined at 45°		●
Objectives	Plan Achromatic 2.5X/0.07	○	○
	Plan Achromatic 4X/0.10	○	○
	Plan Achromatic 10X/0.25	●	●
	Plan Achromatic 20X/0.35 (S)	○	○
	Plan Achromatic 40X/0.65 (S)	●	●
	Plan Achromatic 100X/1.25 (S,O)	●	●
Stage	Double stage size: 180×180mm	●	●
Stage	Moving Range: 50×40mm
Stage Plate	1 (Φ10)	●	●
	2(Φ20)	●	●
	3 (Φ40)	○	○
Set of Stage Plate		●	●
Main Body		●	●
Illumination	3W-LED Lamp	●	●
Illumination	6V/20W Halogen Lamp	○	○
Filters	Blue, Green, Grey	●	●
Micrometer	Division 0.01mm	○	○
Weight/Volume	Packing Size: 437mm×268mm×522mm Gross Weight: 8 kgs Net Weight: 7 kgs
This model also can be inside digital camera system with 130K and 320K pixels.
